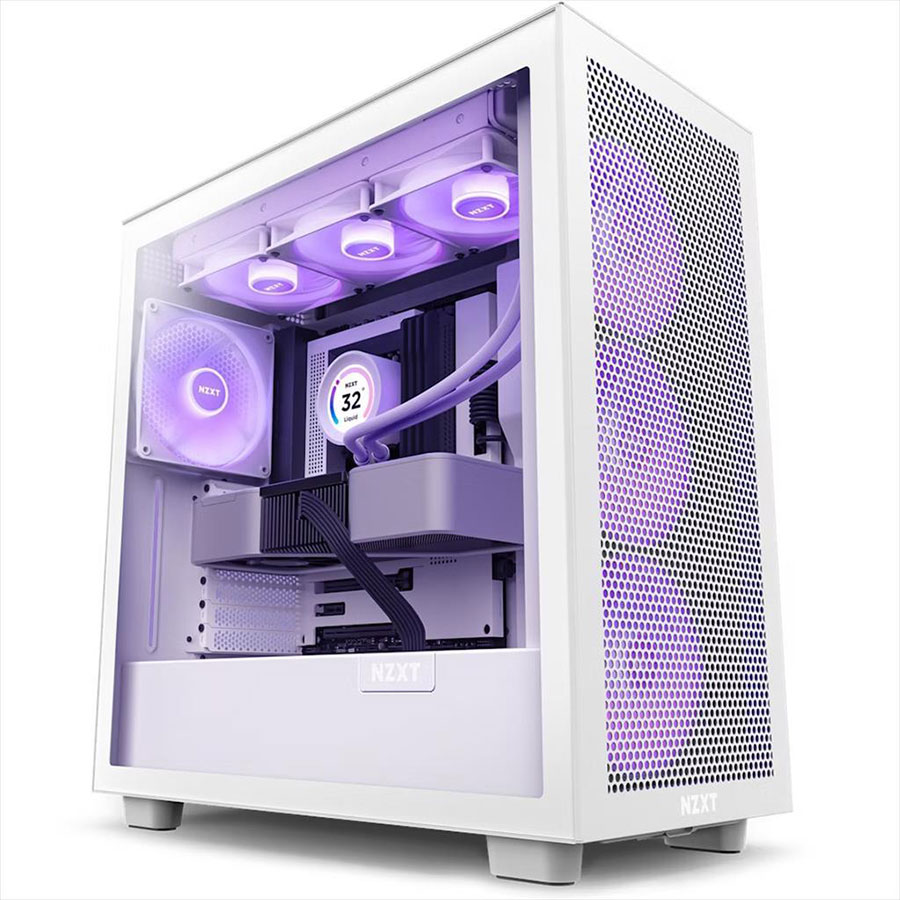

CASE NZXT H7 Flow RGB White

KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX
• Enclosure Type:Mid-Tower
• Case Material (White):SGCC Steel, Ultra-clear Tempered Glass
• Case Material (Black):SGCC Steel, Dark Tinted Tempered Glass

DIMENSIONS

• Height (With Feet):505mm
• Height (Without Feet):480mm
• Width:230mm
• Depth:480mm
• Weight:10.57kg

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:Up to 185mm
• Max GPU Clearance:Up to 400mm
• Front Radiator Clearance:60mm
• Top Radiator Clearance:30mm

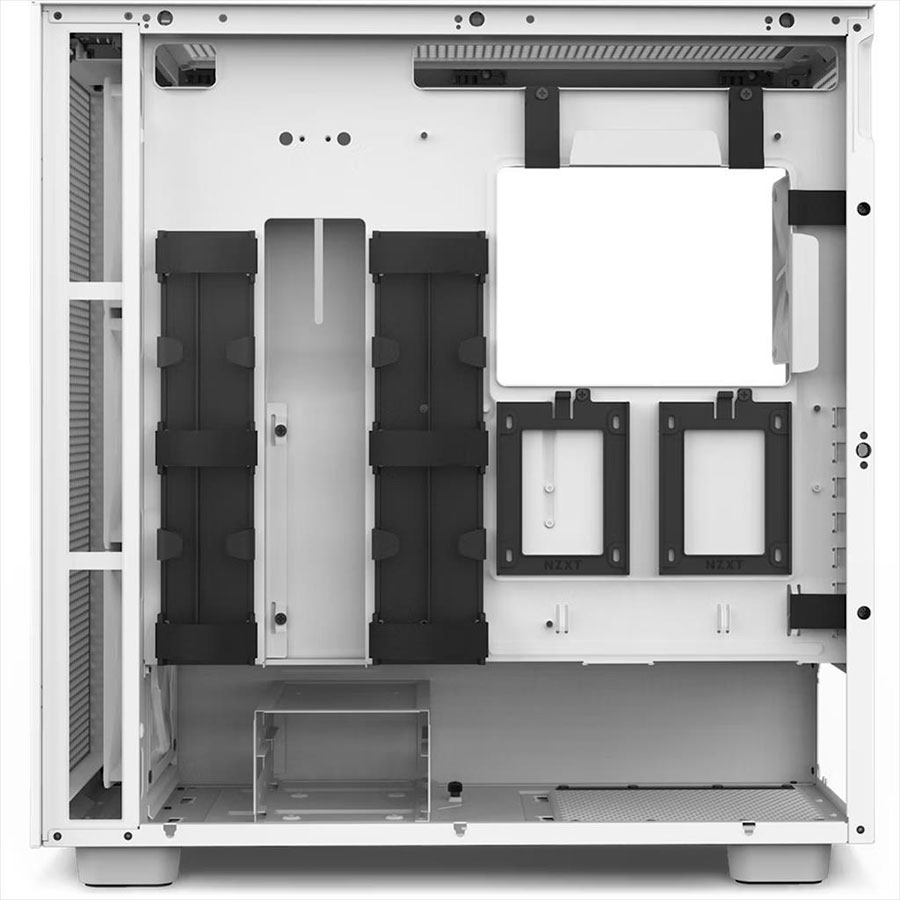

• Cable Management:18-22mm
• PSU Clearance:Up to 200mm

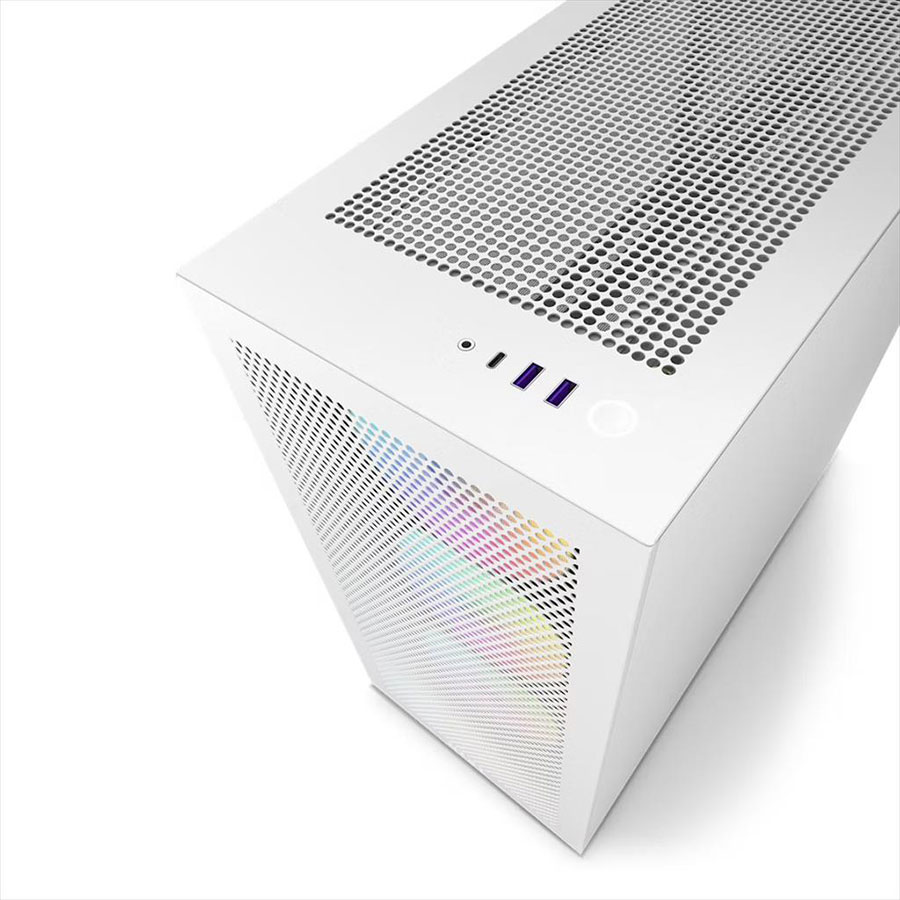

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2
• USB 3.2 Gen 2 Type-C:1
• Headset Audio Jack:1

EXPANSION SLOTS

• Standard:7
• Vertical:0

DRIVE BAYS

• 2.5″:4+2
• 3.5″:2

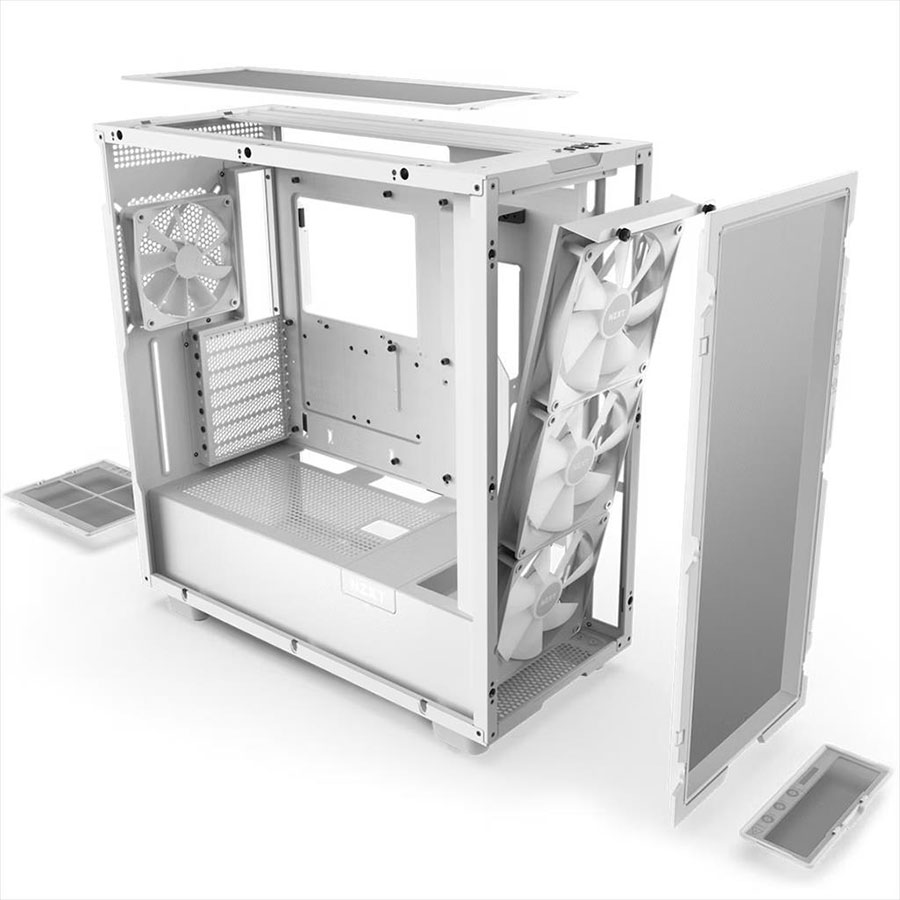

FAN SUPPORT

• Front:3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
• Top:3 x 120mm / 2 x 140mm
• Rear:1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
• Filters:All Air Intakes

RADIATOR SUPPORT

• Front:Up to 360mm with Push/Pull
• Top:Up to 360mm
• Rear:Up to 140mm

FAN SPECS

• Model:F140 RGB Core Fan (Case Version)
• Speed:1200 ± 120 RPM
• Airflow:61.74 CFM
• Static:2.06mm-H2O
• Noise:29.05 dBA
• Fan Connector:3-pin

FAN SPECS

• Model:F120Q (Case Version)
• Speed:1200 ± 240RPM
• Airflow:62.18 CFM
• Static:1.05 mm – H2O
• Noise:25.1 dBA
• Fan Connector:3-pin

GENERAL

• Model Number:CM-H71FW-R1 (White)
• UPC:810074843621 (White)
• EAN:5056547203546 (White)
