PSU be quiet! 1000W DARK POWER 14 80 Plus TITANIUM FULL MODULAR
18.190,00 ден Цените се со пресметан ДДВ
Гаранција: 1800 дена
- Description
Description
General data
| Model | DARK POWER 14 | 1000 W |
| Continuous power (W) | 1000 |
| Peak power (W) | 1100 |
| Form factor | ATX 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | ✓ |
| Voltage (Vac) | 100 – 240 |
| Frequency (Hz) | 50 – 60 |
| Input current (A) | 7 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.15 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Titanium |
| Cybenetics ETA | 1 |
| Efficiency (%) at 230V, 2% load | 73.6 |
| Efficiency (%) at 230V, 10% load | 91.7 |
| Efficiency (%) at 230V, 20% load | 94.6 |
| Efficiency (%) at 230V, 50% load | 95.5 |
| Efficiency (%) at 230V, 100% load | 93.8 |
Fan and cooling technology
| Cybenetics LAMBDA | A+ |
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 8 |
| dB(A) at 20% load | 8 |
| dB(A) at 50% load | 8 |
| dB(A) at 100% load | 18.2 |
Output
| Multi-rail operation (12V rails) | 4 |
| 12V single rail operation | – |
| Overclocking key | ✓ |
| +3.3V (A) | 25 |
| +5V (A) | 24 |
| +12V1 (A) | 33 |
| +12V2 (A) | 33 |
| +12V3 (A) | 40 |
| +12V4 (A) | 40 |
| +12V5 (A) | N/A |
| +12V6 (A) | N/A |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 996 |
| Max. combined power 12V-2×6 (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | – |
| Hold-up time at 80% load (ms) | 20.1 |
| Power good signal (ms) | 100 – 150 |

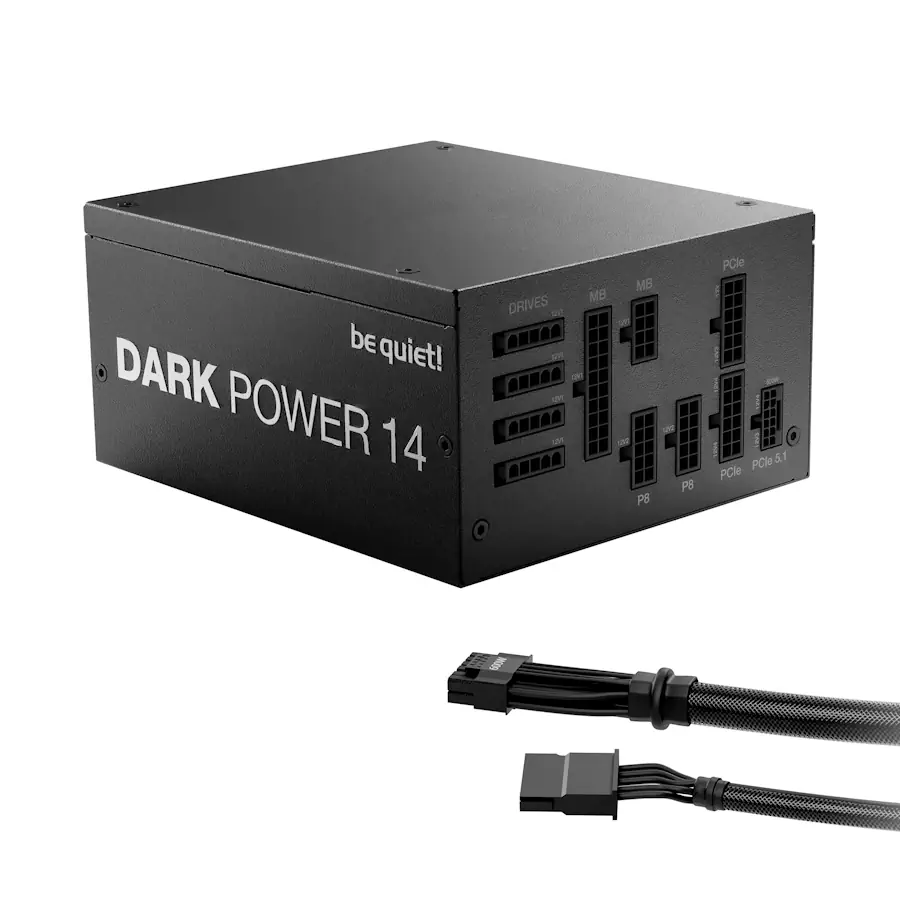

Cables and connectors
| Modular cables | ✓ |
| Sleeved cables | ✓ |
| Flat cables | ✓ |
| Maximum cable length (cm) | 105 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 10 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | – |
| 12V-2×6 cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | – |
| SATA | 13 |
| PATA | 2 |
| FDD (Floppy) | – |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | – |
| CB | ✓ |
| CCC | – |
| CE | ✓ |
| cRUus | – |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | – |
| TÜV | ✓ |
| UKCA | ✓ |
| IRAM | – |
Environmental directives
| Energy Star | 9.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
Scope of delivery
| Thumb screws | – |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | – |
| User manual languages | CN, DE, EN, ES, FR, IT, JP, PL, RU, TW, UA |
| OCK slot bracket with switch / OCK jumper | – |
| SFX-to-ATX adapter bracket | – |
Casing
| Dimensions without cable (L x W x H), (mm) | 175 x 150 x 86 |
| Weight (kg) | 2.2 |
| Color | Black |
