CASE be quiet! PURE BASE 501 – Airflow Window Black
6.590,00 ден Цените се со пресметан ДДВ
Гаранција: 720 дена
- Опис
Опис
General data
| Model | Pure Base 501 Airflow Window Black – BGW74 |
| Color option | Black |
| Motherboard compatibility | ATX / M-ATX / Mini-ITX |

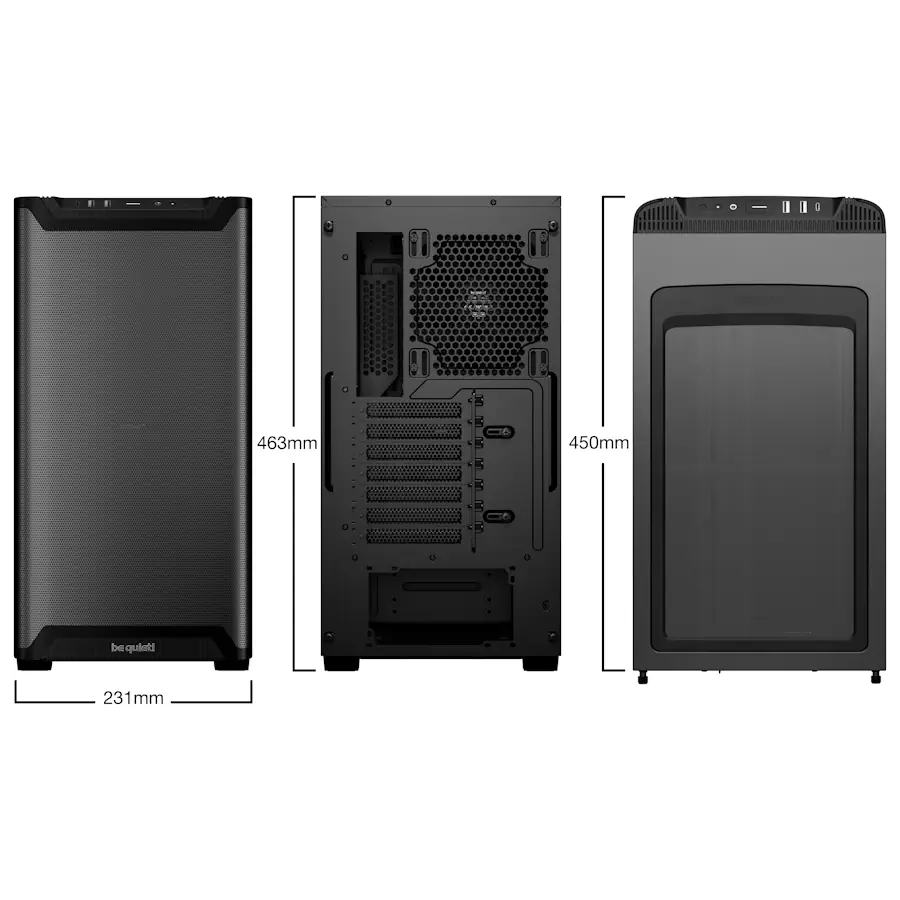

| Case size excl. stands (L x W x H), (mm) | 450 x 231 x 449 |
| Case size incl. stands (L x W x H), (mm) | 450 x 231 x 463 |
| Volume (l) | 39.2 |
| PSU form factor | ATX PS/2 |
| Net weight (kg) | 7.2 |
| Expansion slots | 7 |
Infographics
Pre-installed fans
| Fan at top | – |
| Fan at front | 1x Pure Wings 3 140mm PWM |
| Fan at side | – |
| Fan at rear | 1x Pure Wings 3 140mm PWM |
| Fan at bottom | – |
| Dimensions (L x W x H), (mm) | Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 |
| Fan speed at 100% PWM / 12V (rpm) | 1200 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 0.96 |
| Noise level at 100% PWM / 12V (dB(A)) | 21.9 |
| Voltage range (V DC) | 5 – 13.2 |
| Input power (W) | 3.6 |
| Input current (A) | 0.06 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 80,000 |
| Fan controller | – |
Maximum fan installation
| Maximum fans | 6 |
| Top (mm) | 2x 140 / 2x 120 |
| Front (mm) | 2x 140 / 3x 120 |
| Side (mm) | – |
| Rear (mm) | 1x 140 / 1x 120 |
| Bottom (mm) | – |
| PSU shroud | – |
Optional radiator installation
| Top (mm) | 120 / 240 |
| Front (mm) | 120 / 140 / 240 / 280 / 360 |
| Side (mm) | – |
| Rear (mm) | 120 / 140 |
| Bottom (mm) | – |
PSU compatibility
| Maximum dimensions excl. bottom fan (mm) | 180 |
| Maximum dimensions incl. bottom fan (mm) | 180 |
Graphics card
| HDD cage (in height of graphics card) installed (mm) | 368 |
| HDD cage (in height of graphics card) removed (mm) | 368 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 5 |
Drive bay capacity
| 5.25 bays (pcs.) | – |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 2 |
| 2.5 slots (scope of delivery) | 5 |
| 2.5 slots (max.) | 5 |
Cooling
| Max.construction height of CPU cooler unit (mm) | 178 |
| Airflow channel | – |
Lighting
| LED illumination | – |
| LEDs (pcs.) | – |
| LED type | – |
| LEDs synchronizable with controller/motherboard | – |

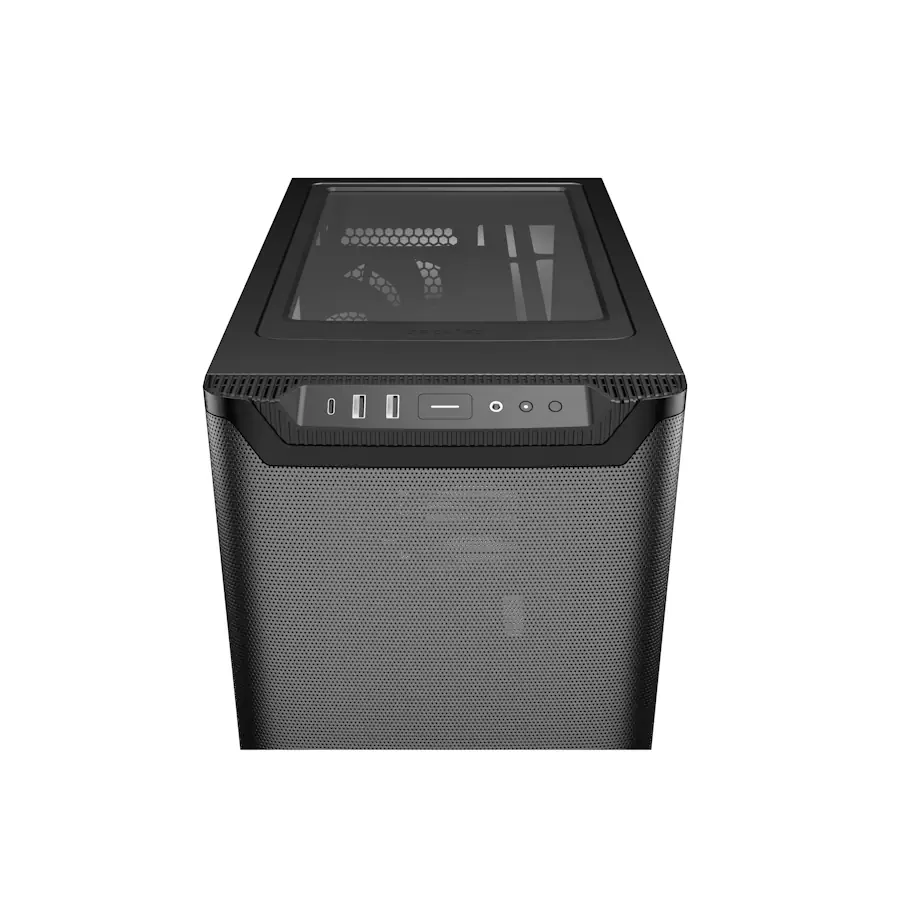

I/O Panel
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | – |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option (W) | – |
Insulation and damping
| Top panel insulation mats | – |
| Front panel insulation mats | – |
| Side panel insulation mats | ✓ |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | ✓ |

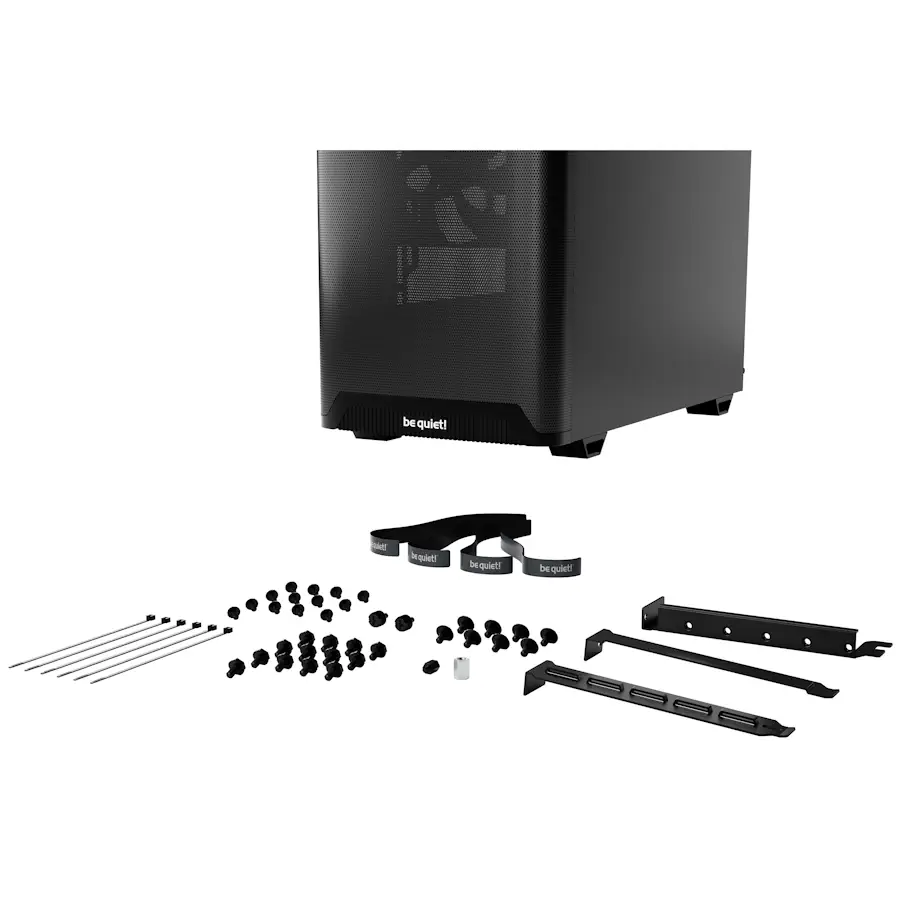

Scope of delivery
| Screw set (Drives/Motherboard) | ✓ |
| Additional standoffs (pcs.) | 1 |
| SSD bracket for PSU shroud | – |
| LED strips (pcs.) | – |
| Cable ties (pcs.) | 12 |
| Screw box | – |
| VGA holder | – |
| VGA holder for inverted layout | – |
| Mesh Front Panel | – |
| ODD Bracket | – |
| Fan / Radiator bracket for multi mounting panel | – |
Removeable dust filters
| Top | 1 |
| Front | 1 |
| Side | – |
| Bottom | 1 |
Material
| Top cover | Steel |
| Front panel | ABS |
| Side panel | Steel |
| Side panel window | Glass |
| Stands | ABS |
Safety certification
| Approvals | CE, UKCA |
Environmental directives
| RoHS | ✓ |
| Reach | ✓ |
| WEEE | – |
| Triman | ✓ |
