PSU Chieftec 750W Atmos 80Plus Gold Modular CPX-750FC
7.490,00 ден
- Опис
Опис
| Model | ATMOS 750W |
|---|---|
| Article no. | CPX-750FC |
| EAN code | 0753263078391 |
| Weight (without/with package) | 1.49kg / 3.02kg |
| AC Input | 100-240V~ / 9-4.5A |
| Frequency | 50 – 60Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 100W |
| +12V1 | 62.5A |
| +12V2 | – |
| +12V1, +12V2 combined | 750W |
| P.F. | >0.9 |
| -12V | 0.3A / 3.6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 750W |

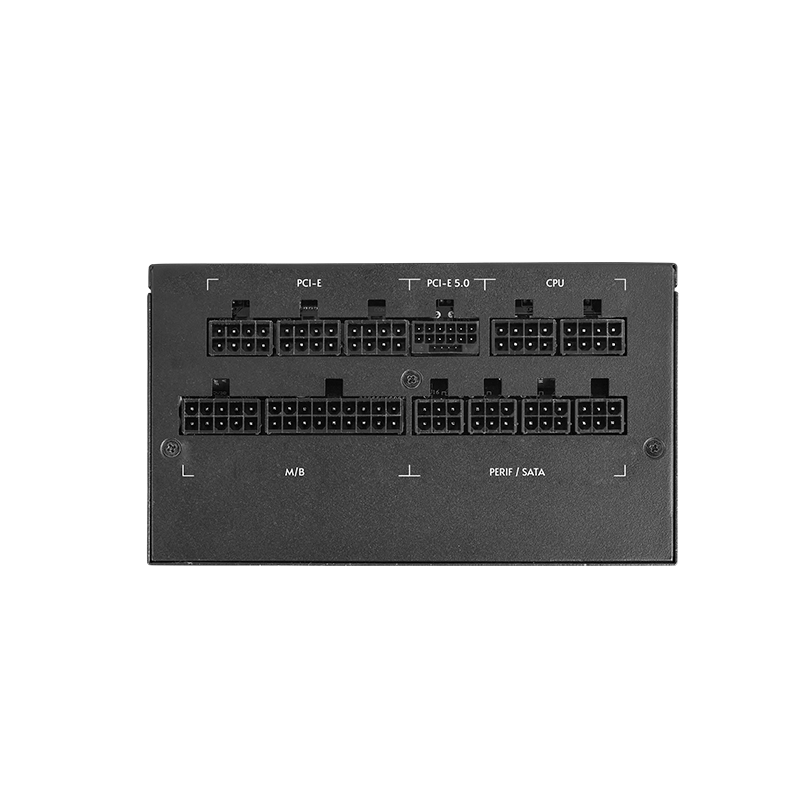

| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 2 / 2 |

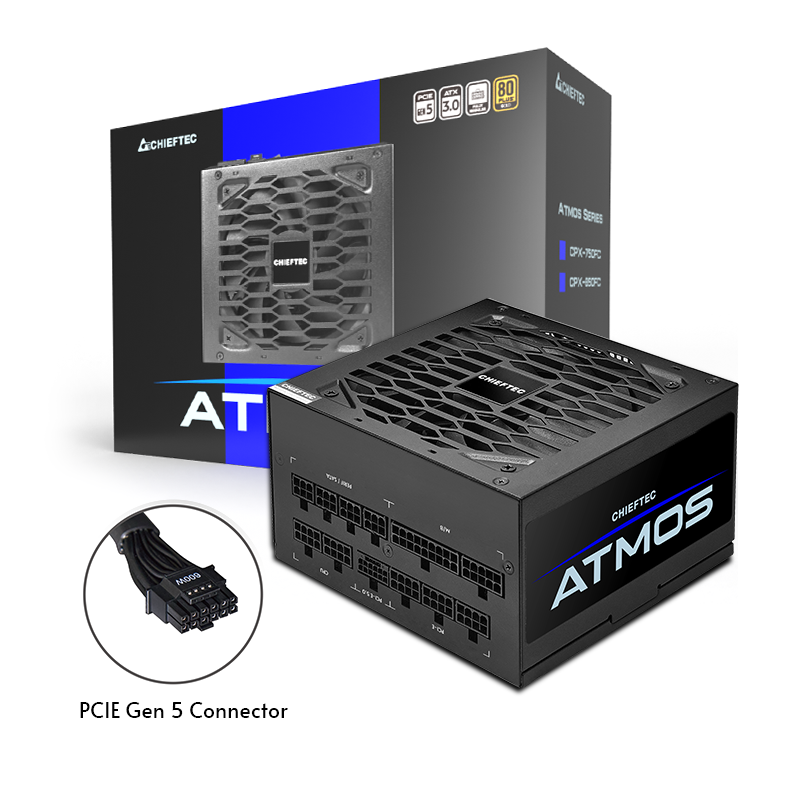

| 16 PIN PCIe GEN5 | 1 |
| SATA | 9 |
| MOLEX | 4 |
| 20+4 PIN ATX | 600 |
|---|---|
| 8 PIN EPS (4+4) | 2 x 700 |
| 8 PIN PCIe (6+2) | 2 x 700 | 700/150 |
| 16 PIN PCIe GEN5 | 600 |
| SATA | 3 x 550/100/100 |
| MOLEX | 550/100/100/100 |
| ATX12V Version | ATX 12V 3.0 |
|---|---|
| Efficiency | 80Plus Gold |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC (0.9) |

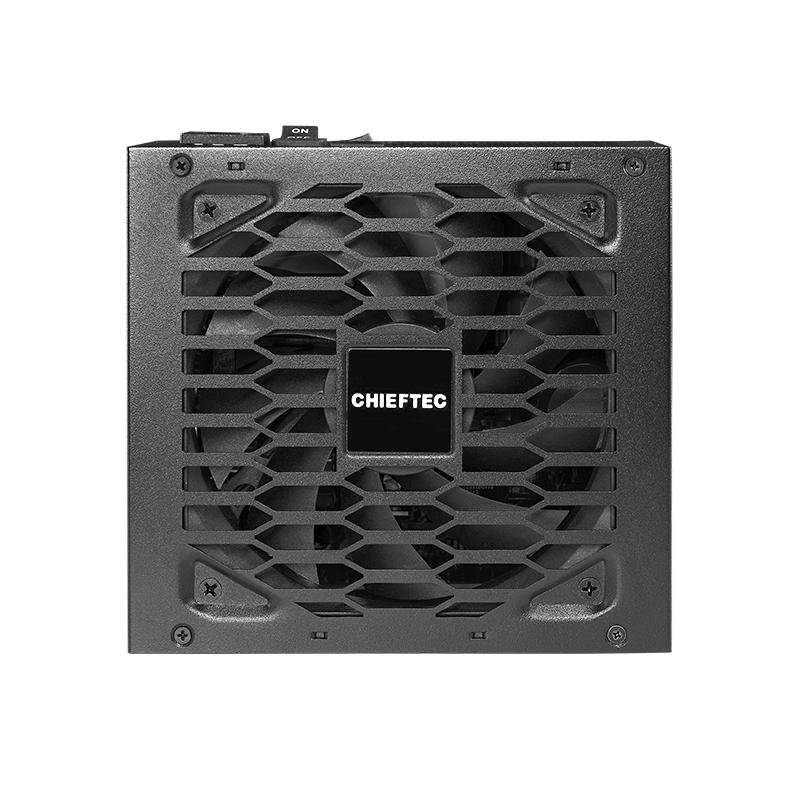

| Fan | 120mm FDB fan |
| Security | AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) OCP (Over-Current Protection) |
