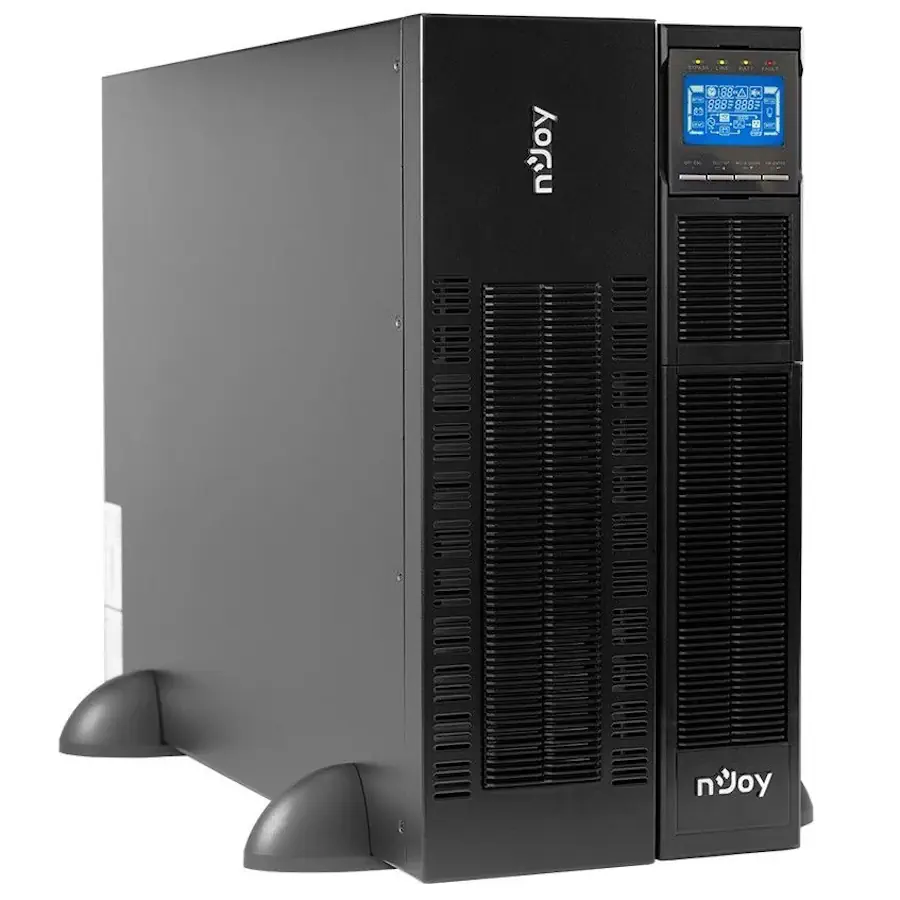

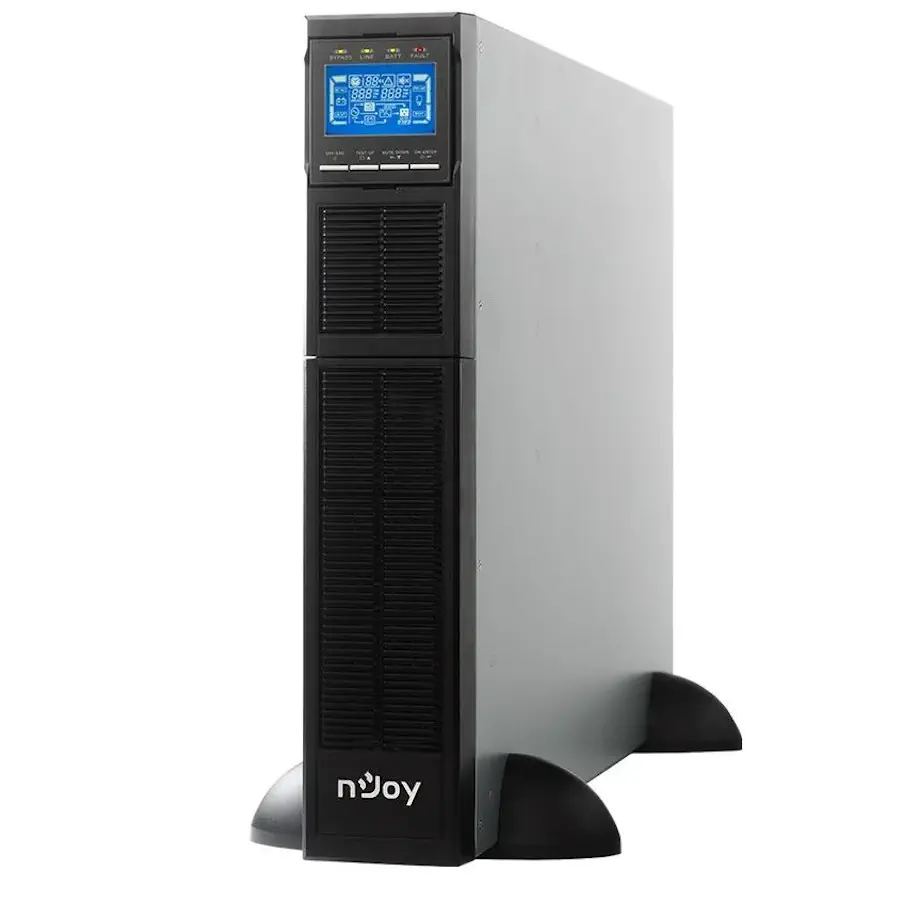

UPS nJoy Balder 10000 10КVA/ 10КW

GS1
5949515901059
PN
PWUP-OL10KBA-AZ01B
Phase
Single Phase
Technology
On-line (VFI)
Typology
Rack (2U) / Convertible
Output waveform
Pure Sine Wave
Output Power Factor
1.0
Power
10KVA / 10KW
Input Nominal Voltage
230V
Input Voltage Range
110 ~ 300 VAC at 0~60% Load
140 ~ 300 VAC at 60~80% Load
176 ~ 300 VAC at 80~100% Load
Input Nominal Frequency
50 Hz / 60 Hz (Auto Sensing)
Output Nominal Voltage
208*/220/230/240 VAC
Output Voltage Precision
± 1% (Batt. Mode)
Outlets
Terminal Block Wiring
Batteries Presence
External Only
Batteries Installed
No batteries installed; it requires at least one battery cabinet
Efficiency
up to 94% (AC Mode)
LCD Display
Yes
Communication Ports
RS232
USB
SNMP
EPO
Typical Backup Time
With one 3U Battery Pack (20 x GP09122F batteries, BTVACIUOCTA2FCN01B):
5 min for ~ 5.800W load
10 min for ~ 4.200W load
15 min for ~ 3.100W load
Parallel operation
Up to 3 units
Generator Compatible
Yes
Features
Higher output crest ratio 3:1

EPO function

Up to 4 External battery pack

User-friendly and easy-shift LCD

Noise Level
<55dB Dimensions (L x W x H) 600 x 438 x 88 [2U] Weight 17 kg (without batteries)
