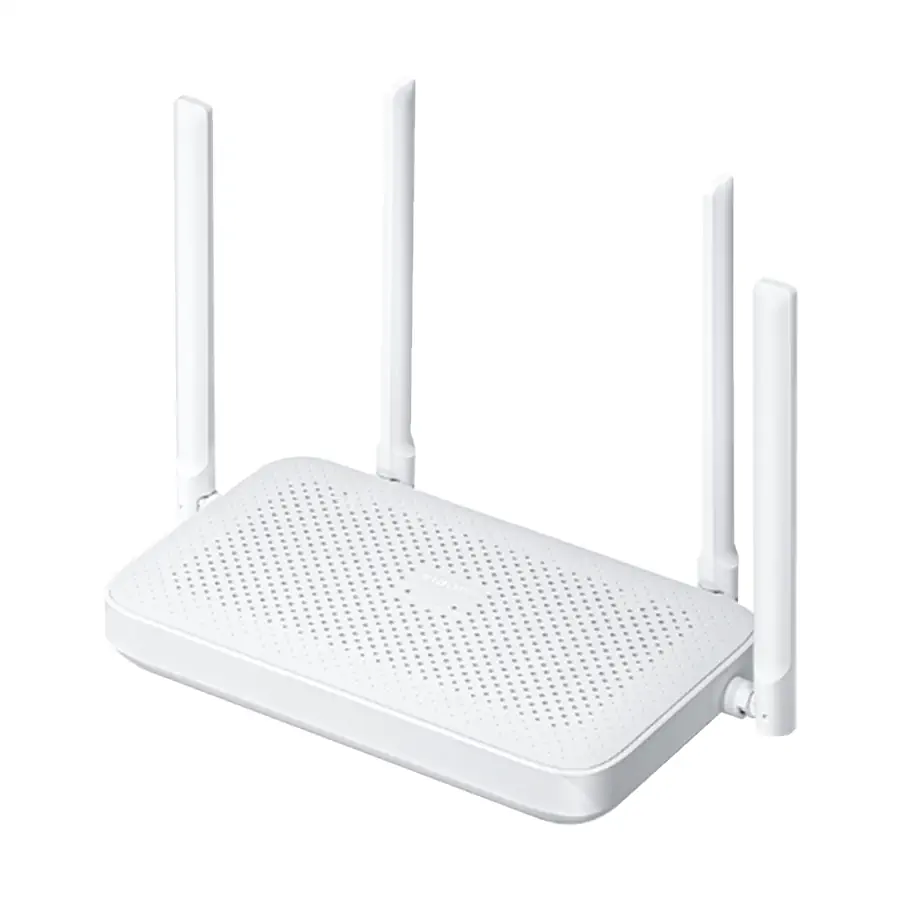

Xiaomi Router Ax1500 Experience Wi-Fi 6

Опис

DVB4412GL

Product Specifications
Dimensions
247mm × 143.5mm × 178.7mm
Colours: White
Hardware Configuration
2.4G Wi-Fi
2 × 2 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 300Mbps)
5GHz Wi-Fi
2 × 2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1201Mbps)
Antennas
4 × High gain antennas
Heat Dissipation
Natural heat dissipation

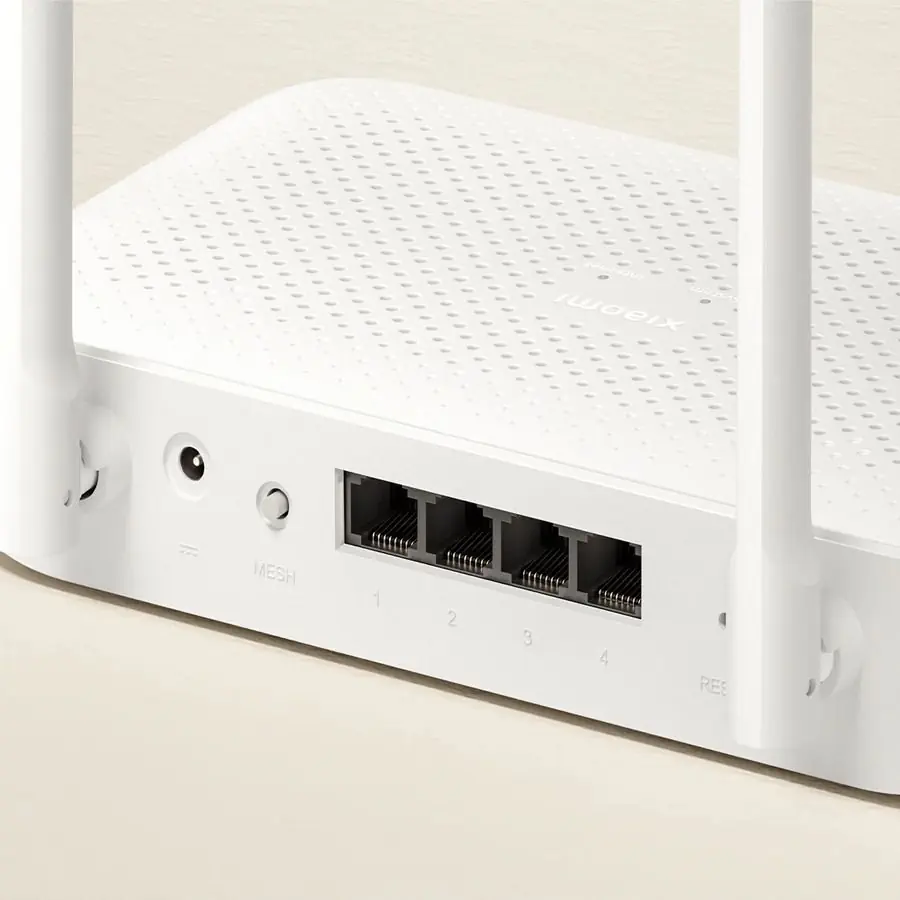

Total Ports
4 × 10/100/1000Mbps self-adaptive WAN/LAN port (Auto MDI/MDIX)
LED Indicator Light
2 lights (System indicator × 1, Internet indicator × 1)
System Reset Button
x1
Mesh Networking Button
x1
Power Input Port
x1
Protocol Standards
IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Wireless Specifications
Dual-band
2.4GHz, 5GHz
Modulation
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Data rate: MCS0-MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Data rates: MCS0-MCS11 (supports 2 streams)
Software Specifications
Operating System
MiWiFi ROM
Wi-Fi Encryption
WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
Wireless access control (black and white list), SSID hidden
Management Applications
Supports Web, Xiaomi Home App (Android, iOS)
Working Environment
Working Environment Temperature
0 ~ 40°C
Operating Humidity
10% ~ 90% RH (non-condensing)
Storage Temperature
-40 ~ 70℃
Storage Humidity
5% ~ 90% RH (non-condensing)
