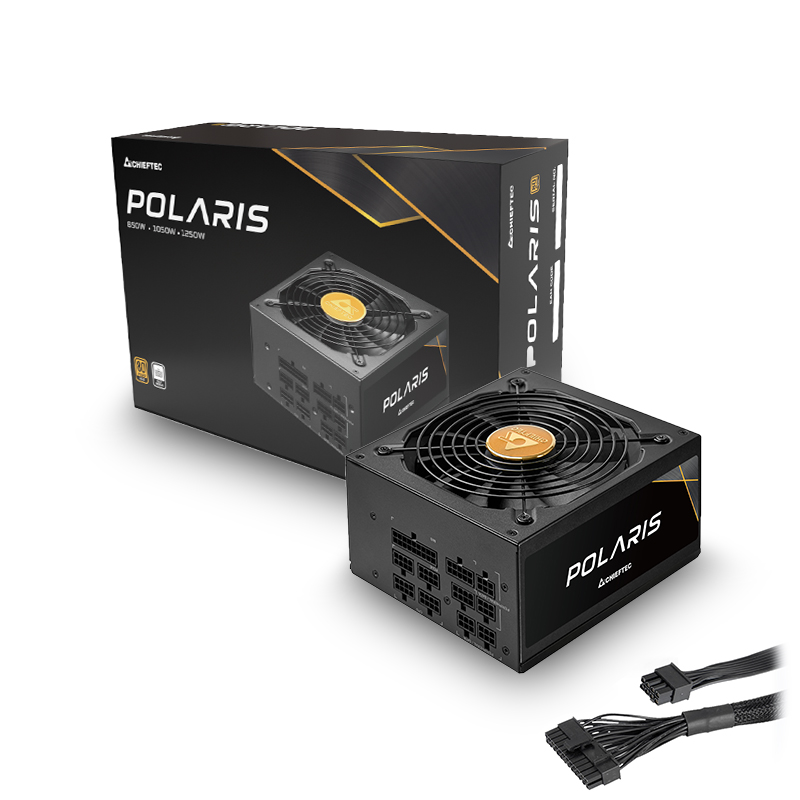

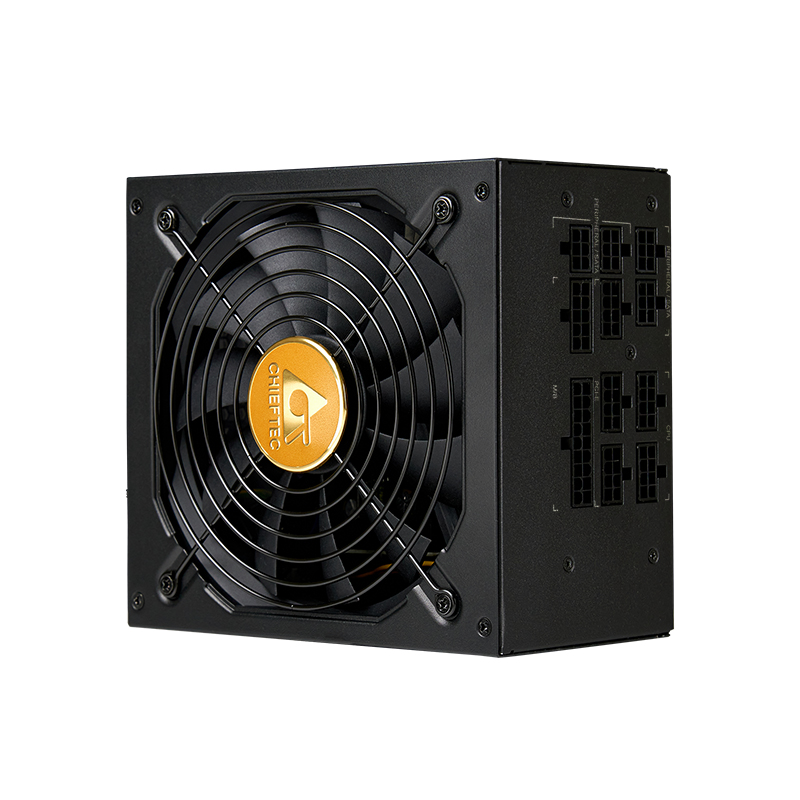

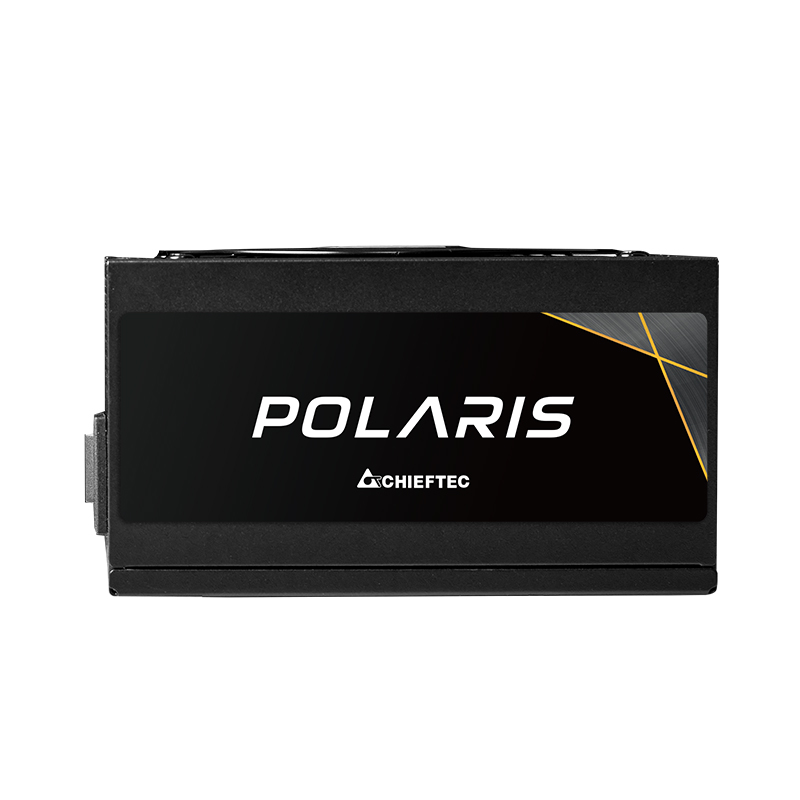

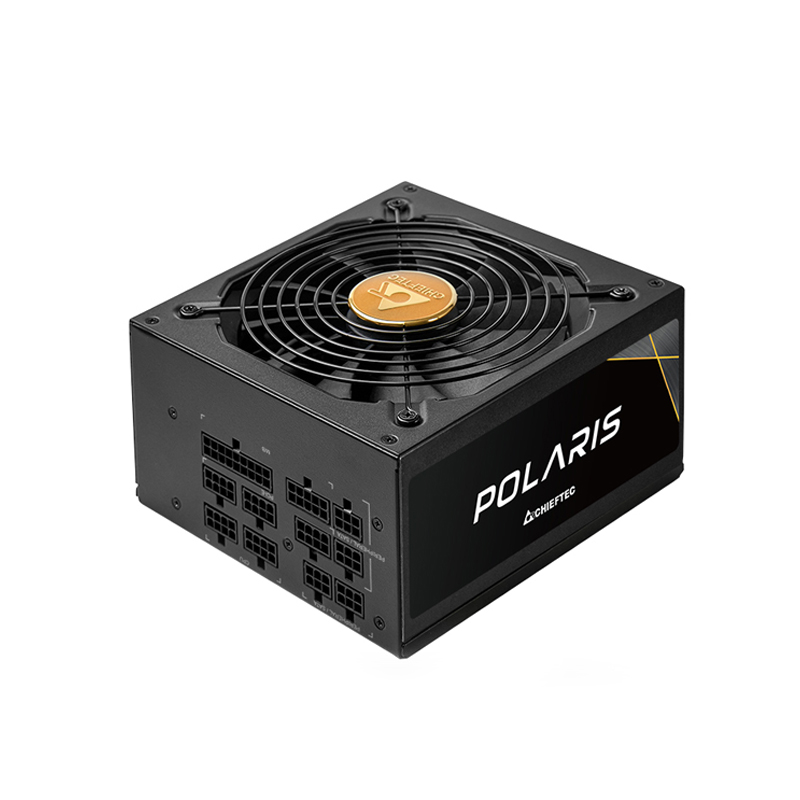

PSU Chieftec 1050W Polaris 80Plus Gold Modular PPS-1050FC-A3
10.990,00 ден
Гаранција: 36 месеци
- Опис
Опис
| Model | POLARIS 1050W |
|---|---|
| Article no. | PPS-1050FC |
| EAN code | 0753263077363 |
| Weight (without/with package) | 2.6kg / 3.4kg |

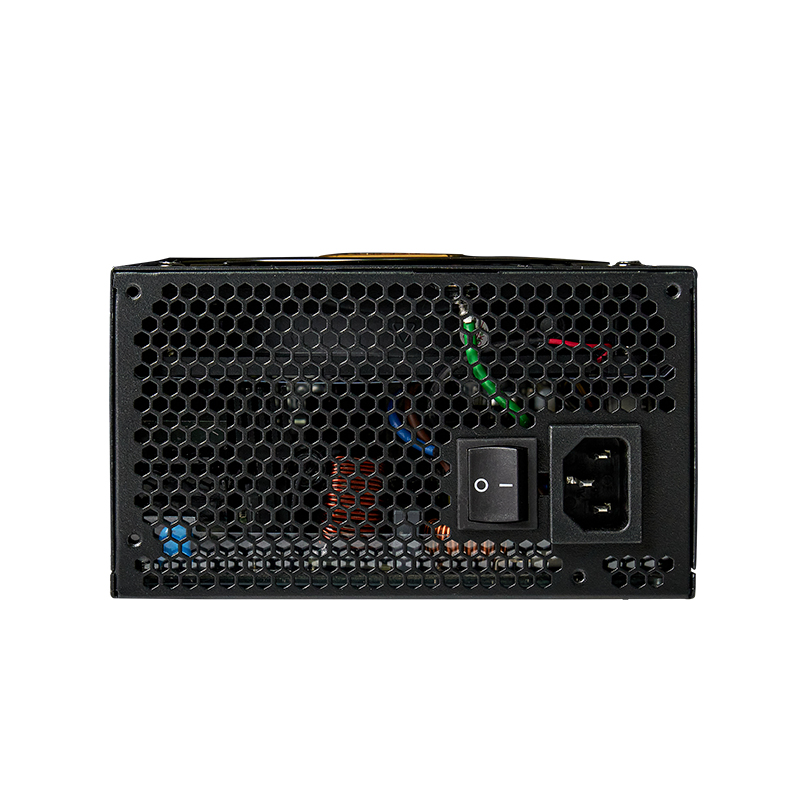

| AC Input | 100-240V / 15A |
| Frequency | 50 – 60Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 87.5A |
| +12V2 | – |
| +12V1, +12V2 combined | 1050W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 1050W |

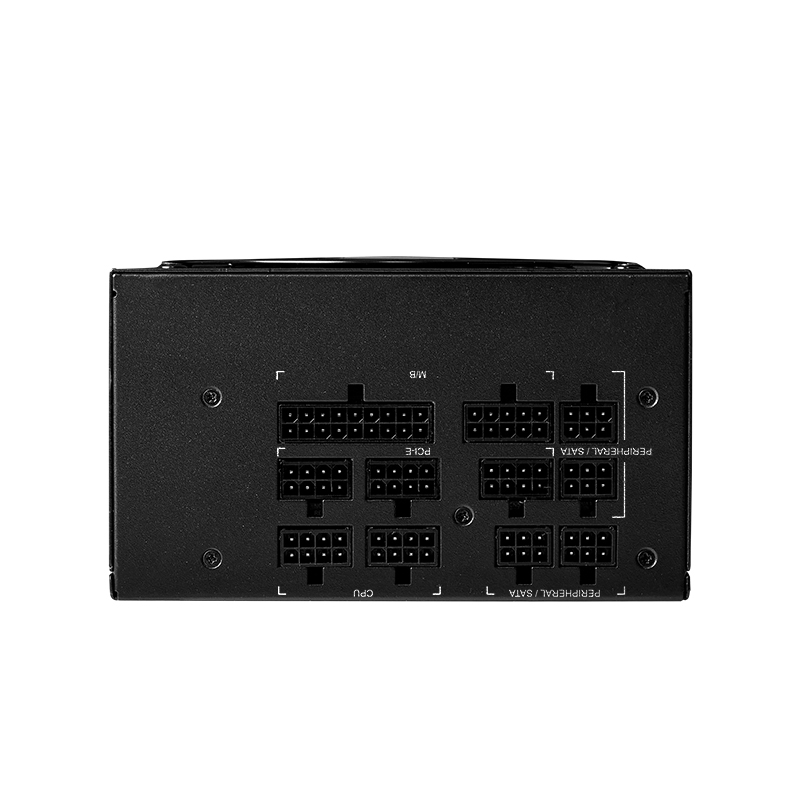

| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 6 |
| SATA | 12 |
| MOLEX | 4 |
| 20+4 PIN ATX | 650 |
|---|---|
| 8 PIN EPS (4+4) | 2 x 650 |
| 8 PIN PCIe (6+2) | 3 x 600/100 |
| SATA | 3 x 550/100/100/100 |
| MOLEX/FLOPPY | 550/100/100/100 |
| ATX12V Version | ATX 12V 2.53 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC |

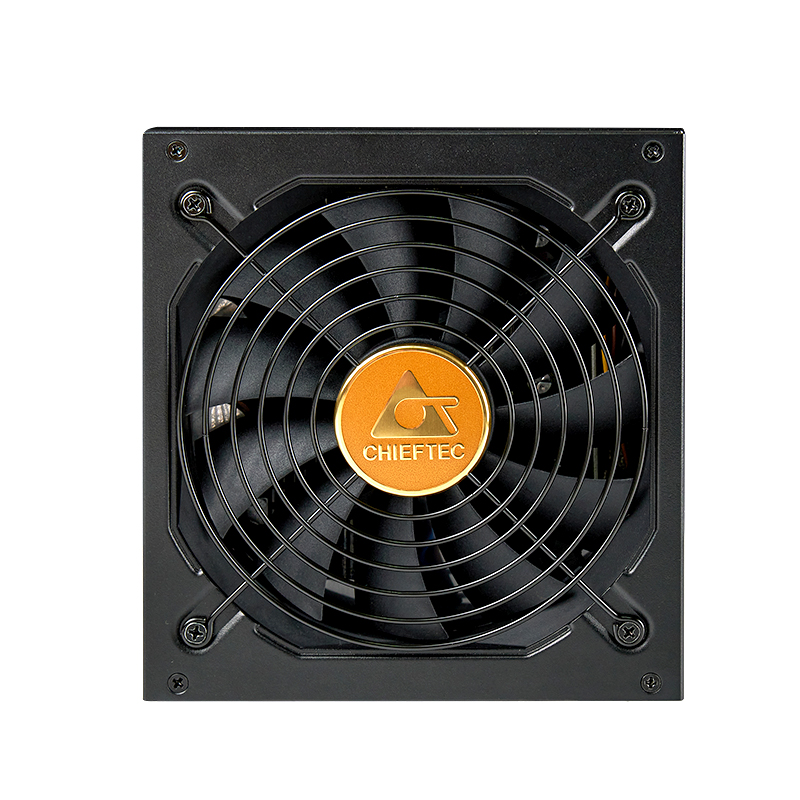

| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
